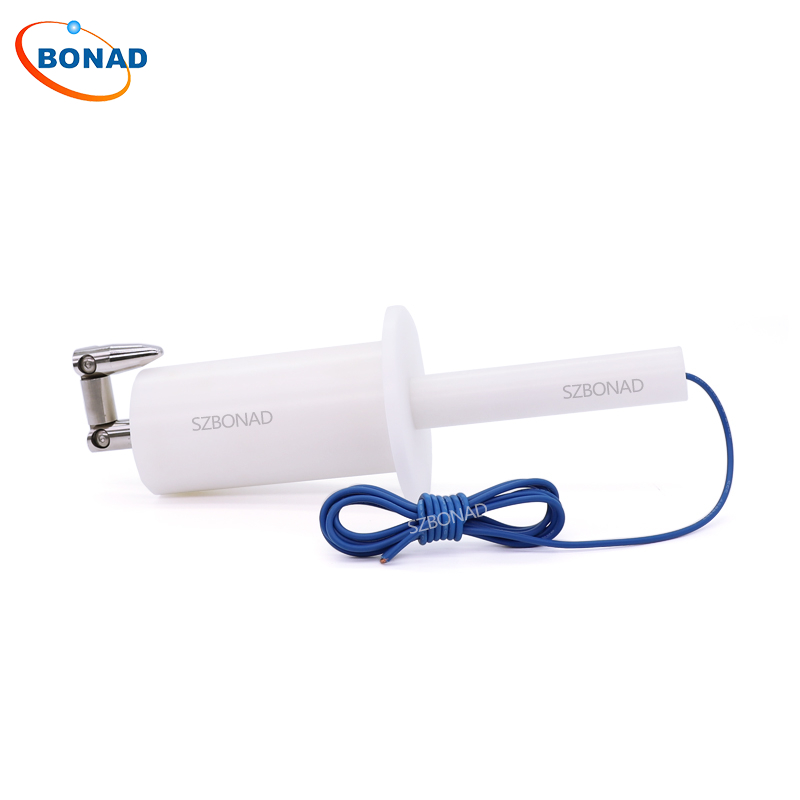

Test Finger Probe with Diameter 50 mm Circular Stop Face

Product Description：

Test Finger Probe with Diameter 50 mm Circular Stop Face of IEC60335 20.2

Model:BND-BD50

The Test probe that is similar to test probe B of IEC61032 but having a circular stop face with a diameter of 50 mm, instead of the non-circular face.

Specification:

Knurled Finger Diameter:12mm

Knurled Finger Length:80mm

Baffle Plate Diameter:50mm

Baffle Plate Length:100mm

Baffle Thickness:20mm

Standards:

IEC61032 IEC60950 IEC60335 IEC60529 IEC60045 IEC60084 IEC60745-1
