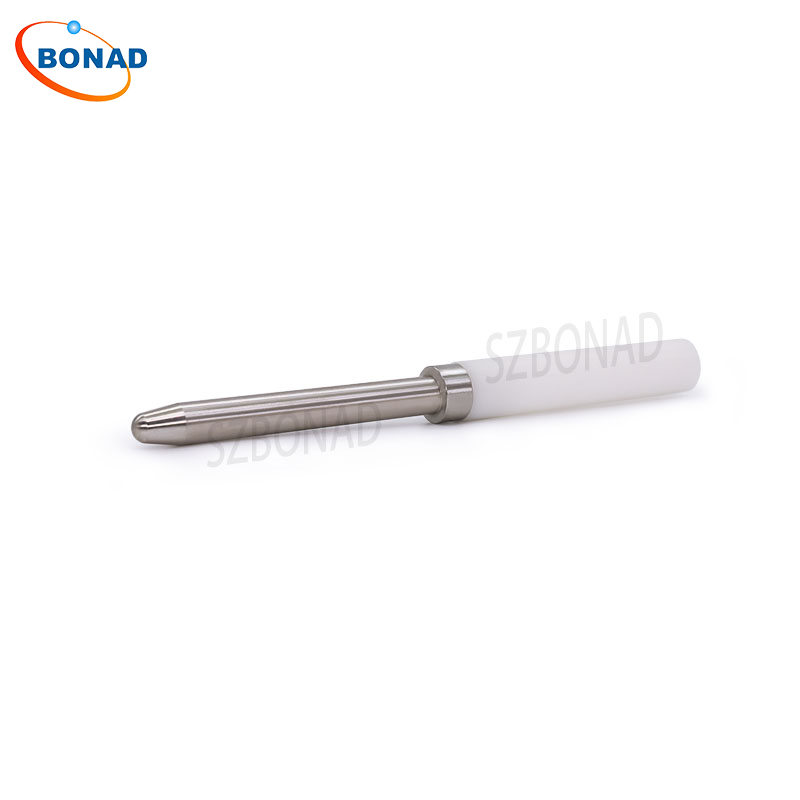

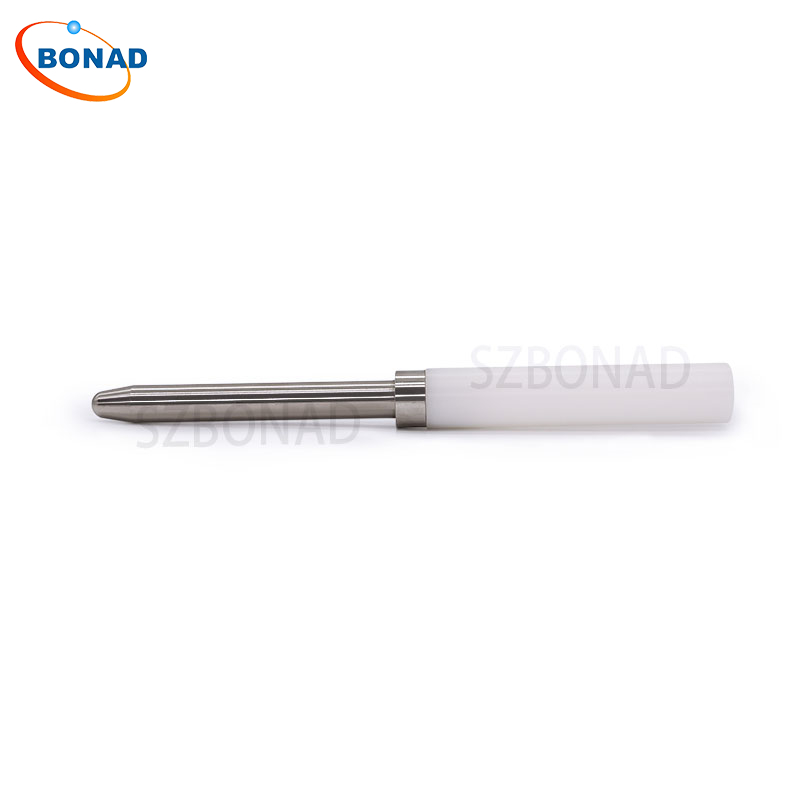

PA130A UL Rigid Test Probe BND-TB130

Product Description：

Basic Introduction:

1, According to UL1278、UL1026 and UL 507

2, Applicable to the apparatus structure and shell easy access to live parts of protective performance check

Technical parameters

1, Straight Finger Diameter:12.7mm(1/2 inch)

2, Straight Finger Total Length:101.6mm(4 inch)

3, The Head Length:14.3mm(9/16 inch)

4, The Head Radius: R 4.8MM(3/16 inch)

5, The Tail Diameter:19.1mm(3/4 inch)

6, According to UL507(135A)、UL1026(PA130A) 、UL1278(PA130A)
