Product Description：
Name：IEC 62552 freezing point load test package for refrigerator and freezer
Type：BND-RT01
Overview
Our test packages are widely used globally for evaluating the performance of refrigerators, freezers, and other cooling appliances. They are known for their safety, affordability, and long-lasting durability.
Why Choose Us?
*Experience: Over 20 years in the industry.
*Quality: Made with high-quality raw materials and skilled craftsmanship.
*Reputation: Trusted by numerous refrigerator factories and laboratories worldwide.
*Customization: We offer custom-made test packages that comply with various standards.
*Support: Comprehensive after-sales service with a one-year warranty.
Product Specifications of Test package:
Dimensions and Tolerances
1. Our test packages come in the form of rectangular parallelepipeds with specific dimensions and mass as outlined below:
| Dimension（mm） | Tolerance | Mass（g） | Tolerance |
| 25 × 50 × 100 | ± 2.0mm for dimensions 25 and 50; ± 3.0mm for dimensions 100 and 200 | 125 | ±2% |

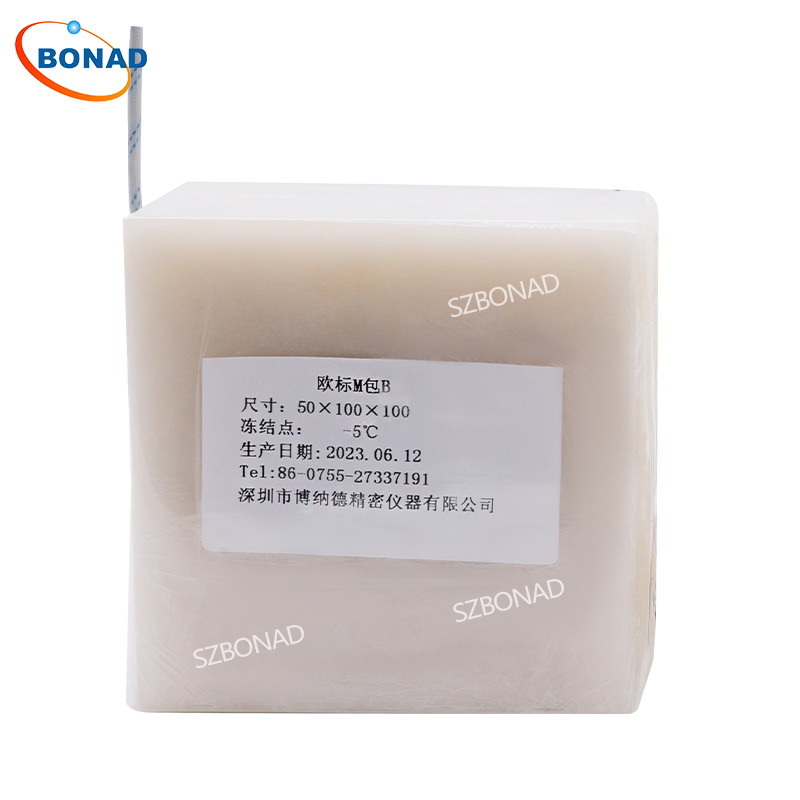

2. Standard M Test Packages According to IEC62552
These test packages are equipped with thermocouples or pre-embedded copper tubes for temperature measurement. The dimensions are as follows:
| Dimensions (mm) | Weight (g) | Dimensional Tolerance | Weight Tolerance |
|---|---|---|---|
| 50x100x100 | 500 | ±2mm (50), ±3mm (100) | ±2% |
Composition
The packages shall consist of the following.
a)A suitable filling material containing, per 1 000 g:
--230 g of oxyethylmethylcellulose;
--764.2 g of water;
--5 g of sodium chloride;
--0,8 g of 6-chloro-m-cresol.
The freezing point of this material is - 1 °C (its thermal characteristics correspond to those of lean beef)
b) The following alternative composition of test packages with a freezing point near - 5 °C may be used:
--232 g of oxyethyimethylcellulose
--725 g of water;
--43 g of sodium chloride;
--0.6 g of 6-chloro-m-cresol.
In case of dispute, the composition of test package a) shall be used as the reference test package.For the measurement of chill compartments, only test package b), with a freezing point of - 5 °C, shall be
used.
For disputes, the standard composition is used as the reference test package.
Custom Solutions:
We offer custom-made test packages tailored to your specific needs, including copper pillars and plugs for thermocouple wire connections.
Regular Maintenance of filled pacakge:
1. Need at below zero temperature condition when long storing, the optimum temporary is -18℃.
2. Thawing: Should be natural thawed at room temperature, don’t use such as microwave ovens, electromagnetic ovens to thaw.
3. Freezing: Beware of deformation when test package begin to freeze. Need repair timely if they have been deformed. The correct way is freezing in batches, when lower test package has completely freezing, add another one above it. This can prevents the lowermost test package by extrusion.
4. Seal: Keeping in sealed condition, once package is damaged should be repaired or discarded immediately, otherwise evaporation of water will affect the quality of test package.
FAQ Of Test Package:
1. How many kinds of test package do you manufacture?
----there are 4 kinds of test packges.
1.1 IEC 62552 standard Test Packages & M package.
1.2 AS1731.4-2003 Australia Standard Test Packages
1.3 AHAMHRF-1 2007/ SASO 2664-2007 Sawdust package & M packages
1.4 ANSI/ASHRAE Standard 72-2005 North American commercial test package & M packages
2. How to store the test package?
---We recommend storing the test kit in an environment below -18℃.
3. what is the lead time?
---the lead time is based on the quantity you need, it is about 7-15 days.
